一、硬件組成如下圖所示：

硬件全家福：

STM32F407ZGT6+ESP8266

二、下載通用APP DEMO：

1.在應用商店，搜索“機智云”APP。

通用APP Demo 又稱“機智云”APP

2.安裝、注冊、登陸后如下圖所示：

三、調試過程詳解：

創建數據點

生成MCU工程

下載MCU工程并根據開發板原理圖修改工程，修改的地方如程序中紅色加注釋的部分

main.c 中加入紅色標出的GPIO初始化代碼

static void MX_GPIO_Init(void)

{

GPIO_InitTypeDef GPIO_InitStruct;

/* GPIO Ports Clock Enable */

__HAL_RCC_GPIOE_CLK_ENABLE();

__HAL_RCC_GPIOH_CLK_ENABLE();

__HAL_RCC_GPIOA_CLK_ENABLE();

__HAL_RCC_GPIOF_CLK_ENABLE(); //GPIOF CLK Enable：Used to Ctrol LED

/*Configure GPIO pins : KEY2_Pin KEY1_Pin */

GPIO_InitStruct.Pin = KEY2_Pin|KEY1_Pin;

GPIO_InitStruct.Mode = GPIO_MODE_INPUT;

GPIO_InitStruct.Pull = GPIO_PULLUP;

HAL_GPIO_Init(GPIOE, &GPIO_InitStruct);

/*Configure GPIO pin Output Level */

HAL_GPIO_WritePin(GPIOE, LED1_Pin|LED0_Pin, GPIO_PIN_SET);

/*Configure GPIO pins : LED1_Pin LED0_Pin */

GPIO_InitStruct.Pin = LED1_Pin|LED0_Pin;

GPIO_InitStruct.Mode = GPIO_MODE_OUTPUT_PP;

GPIO_InitStruct.Speed = GPIO_SPEED_FREQ_HIGH;

HAL_GPIO_Init(GPIOF, &GPIO_InitStruct);

}

main.h頭文件中增加以下內容

/* USER CODE BEGIN Private defines */

#define LED1_Pin GPIO_PIN_9

#define LED1_GPIO_Port GPIOF

#define LED0_Pin GPIO_PIN_10

#define LED0_GPIO_Port GPIOF

/* USER CODE END Private defines */

gizwits_product.c中需要用戶添設備上電狀態代碼如下圖所示

void userInit(void)

{

memset((uint8_t*)¤tDataPoint, 0, sizeof(dataPoint_t));

/** Warning !!! DataPoint Variables Init , Must Within The Data Range **/

currentDataPoint.valueValve = 0;

currentDataPoint.valueLED0 = 1;

currentDataPoint.valueLED1 = 1;

currentDataPoint.valueState = 1;

currentDataPoint.valueValue = 5;

}

gizwits_product.c中需要用戶添加的代碼如下圖所示

int8_t gizwitsEventProcess(eventInfo_t *info, uint8_t *gizdata, uint32_t len)

{

uint8_t i = 0;

dataPoint_t *dataPointPtr = (dataPoint_t *)gizdata;

moduleStatusInfo_t *wifiData = (moduleStatusInfo_t *)gizdata;

protocolTime_t *ptime = (protocolTime_t *)gizdata;

#if MODULE_TYPE

gprsInfo_t *gprsInfoData = (gprsInfo_t *)gizdata;

#else

moduleInfo_t *ptModuleInfo = (moduleInfo_t *)gizdata;

#endif

if((NULL == info) || (NULL == gizdata))

{

return -1;

}

for(i=0; inum; i++)

{

switch(info->event[i])

{

case EVENT_Valve:

currentDataPoint.valueValve = dataPointPtr->valueValve;

GIZWITS_LOG('Evt: EVENT_Valve %d ', currentDataPoint.valueValve);

if(0x01 == currentDataPoint.valueValve)

{

//user handle

HAL_GPIO_TogglePin(LED1_GPIO_Port,LED1_Pin); //led1閃爍 ,沒有閥，用燈替代

HAL_Delay(500);

HAL_GPIO_TogglePin(LED0_GPIO_Port,LED0_Pin); //led0閃爍 沒有閥，用燈替代

HAL_Delay(500);

}

else

{

//user handle

HAL_GPIO_WritePin(LED1_GPIO_Port,LED1_Pin,GPIO_PIN_SET); //熄滅led1

HAL_GPIO_WritePin(LED0_GPIO_Port,LED0_Pin,GPIO_PIN_SET); //熄滅led0

}

break;

case EVENT_LED0:

currentDataPoint.valueLED0 = dataPointPtr->valueLED0;

GIZWITS_LOG('Evt: EVENT_LED0 %d ', currentDataPoint.valueLED0);

if(0x01 == currentDataPoint.valueLED0)

{

//user handle

HAL_GPIO_WritePin(GPIOF,GPIO_PIN_10,GPIO_PIN_RESET); //點亮led0

}

else

{

//user handle

HAL_GPIO_WritePin(GPIOF,GPIO_PIN_10,GPIO_PIN_SET); //熄滅led0

}

break;

case EVENT_LED1:

currentDataPoint.valueLED1 = dataPointPtr->valueLED1;

GIZWITS_LOG('Evt: EVENT_LED1 %d ', currentDataPoint.valueLED1);

if(0x01 == currentDataPoint.valueLED1)

{

//user handle

HAL_GPIO_WritePin(GPIOF,GPIO_PIN_9,GPIO_PIN_RESET); //點亮led1

}

else

{

//user handle

HAL_GPIO_WritePin(GPIOF,GPIO_PIN_9,GPIO_PIN_SET); //滅掉led1

}

break;

case WIFI_SOFTAP:

break;

case WIFI_AIRLINK:

break;

case WIFI_STATION:

break;

case WIFI_CON_ROUTER:

break;

case WIFI_DISCON_ROUTER:

break;

case WIFI_CON_M2M:

break;

case WIFI_DISCON_M2M:

break;

case WIFI_RSSI:

GIZWITS_LOG('RSSI %d ', wifiData->rssi);

break;

case TRANSPARENT_DATA:

GIZWITS_LOG('TRANSPARENT_DATA ');

//user handle , Fetch data from [data] , size is [len]

break;

case WIFI_NTP:

GIZWITS_LOG('WIFI_NTP : [%d-%d-%d %02d:%02d:%02d][%d] ',ptime->year,ptime->month,ptime->day,ptime->hour,ptime->minute,ptime->second,ptime->ntp);

break;

case MODULE_INFO:

GIZWITS_LOG('MODULE INFO ... ');

#if MODULE_TYPE

GIZWITS_LOG('GPRS MODULE ... ');

//Format By gprsInfo_t

#else

GIZWITS_LOG('WIF MODULE ... ');

//Format By moduleInfo_t

GIZWITS_LOG('moduleType : [%d] ',ptModuleInfo->moduleType);

#endif

break;

default:

break;

}

}

return 0;

}

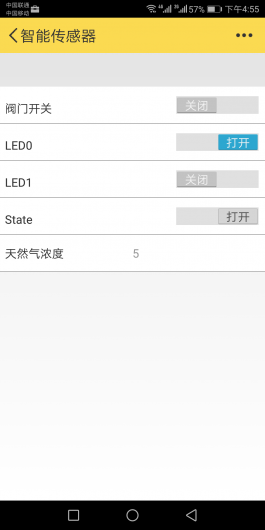

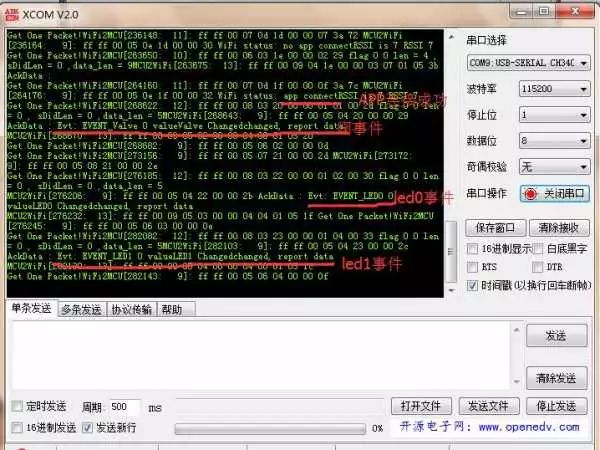

4.程序燒錄:使用FlyMCU進行程序燒寫， 5.打開APP操控體驗6.打開Xcom查看調試信息

四、注意事項：

1.正確找出開發板的UART2接口：本開發板中對應關系如下:

UART2_TX：PA2,

UART2_RX：PA3,

2.保證與ESP8266模塊的管腳接線正確：

V3.3（接開發板3.3V）；

GND（接開發板GND）；

TX (接開發板的PA3管腳)；

RX (接開發板的PA2管腳)；

3.由于本次使用的ESP8266是原來機智云二代產品上的，可能正常聯上機智云，故沒有給ESP8266燒寫固件
